QQ Series

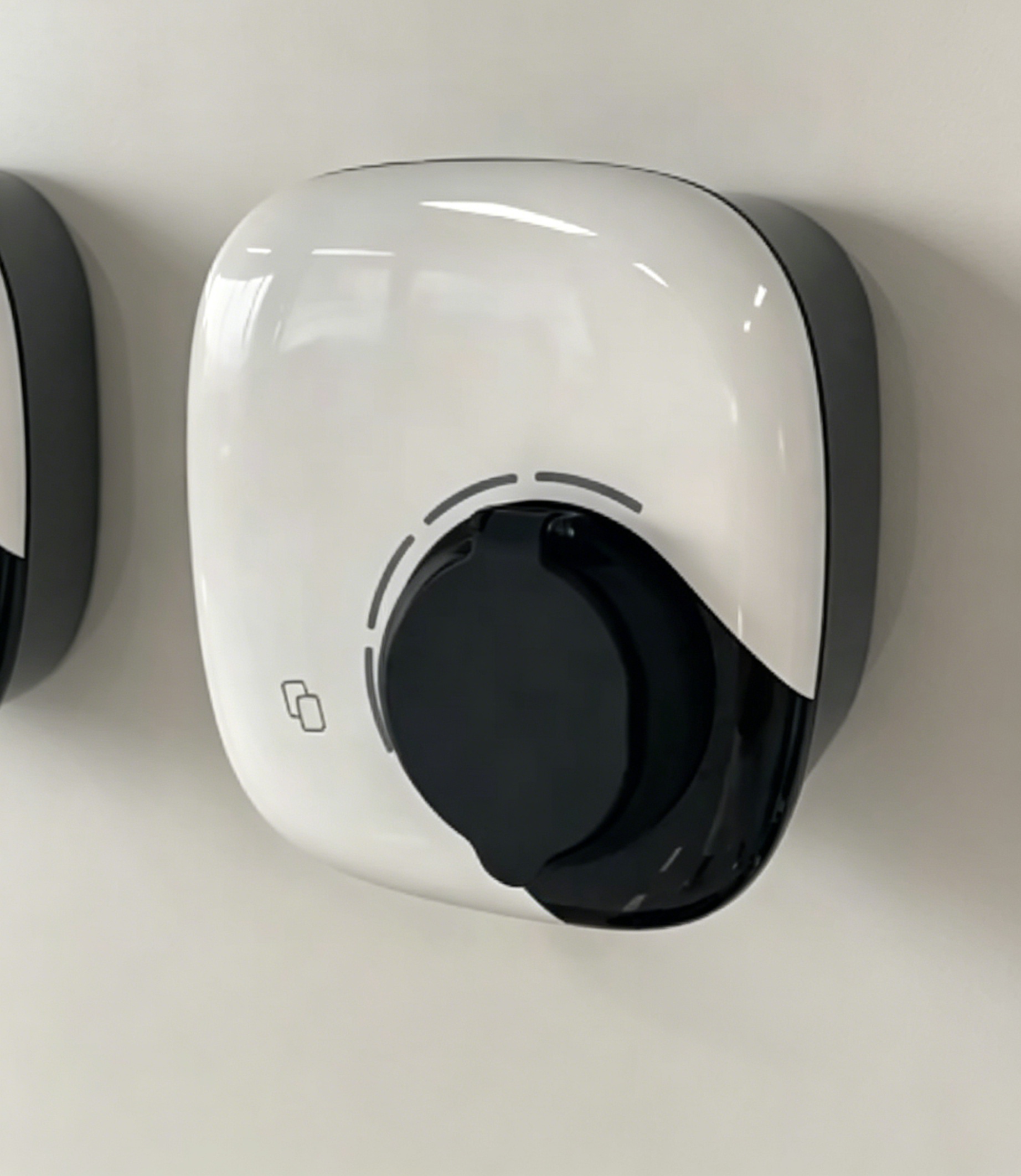

QQ Series | Ultra-Compact AC EV Charger (7KW/11KW/22KW)

Built for space-limited home users, small commercial parking lots, property management teams, and compact charging infrastructure deployment

✅ 3 power options: 7KW (single-phase) / 11KW (three-phase) / 22KW (three-phase)

✅ Ultra-compact size: only 21.5×23×14.9cm (7KW version), saves 30% installation space

✅ Dual start modes: plug-and-play + RFID card swipe, for home and commercial use

✅ IP66 dust & waterproof rating, safe for outdoor long-term use

✅ Full global certifications: CE/FCC/ROHS/UKCA, compliant with worldwide market standards

Core Performance

3 power grades to match different needs: 7KW for home daily charging, 11KW/22KW for commercial fast charging

Wide grid adaptation: 7KW version AC220-240V single-phase input, 11KW/22KW version AC380-400V three-phase input, compatible with global grids

Stable output: 32A max current for 7KW/22KW, 16A for 11KW, ensuring efficient and consistent charging

High-quality PC9010 flame-retardant housing, impact-resistant and anti-aging, durable for long-term outdoor use

Ultra-compact body design, 30% smaller than standard AC chargers, perfect for narrow parking spaces and small garages

Operational and Installation Flexibility

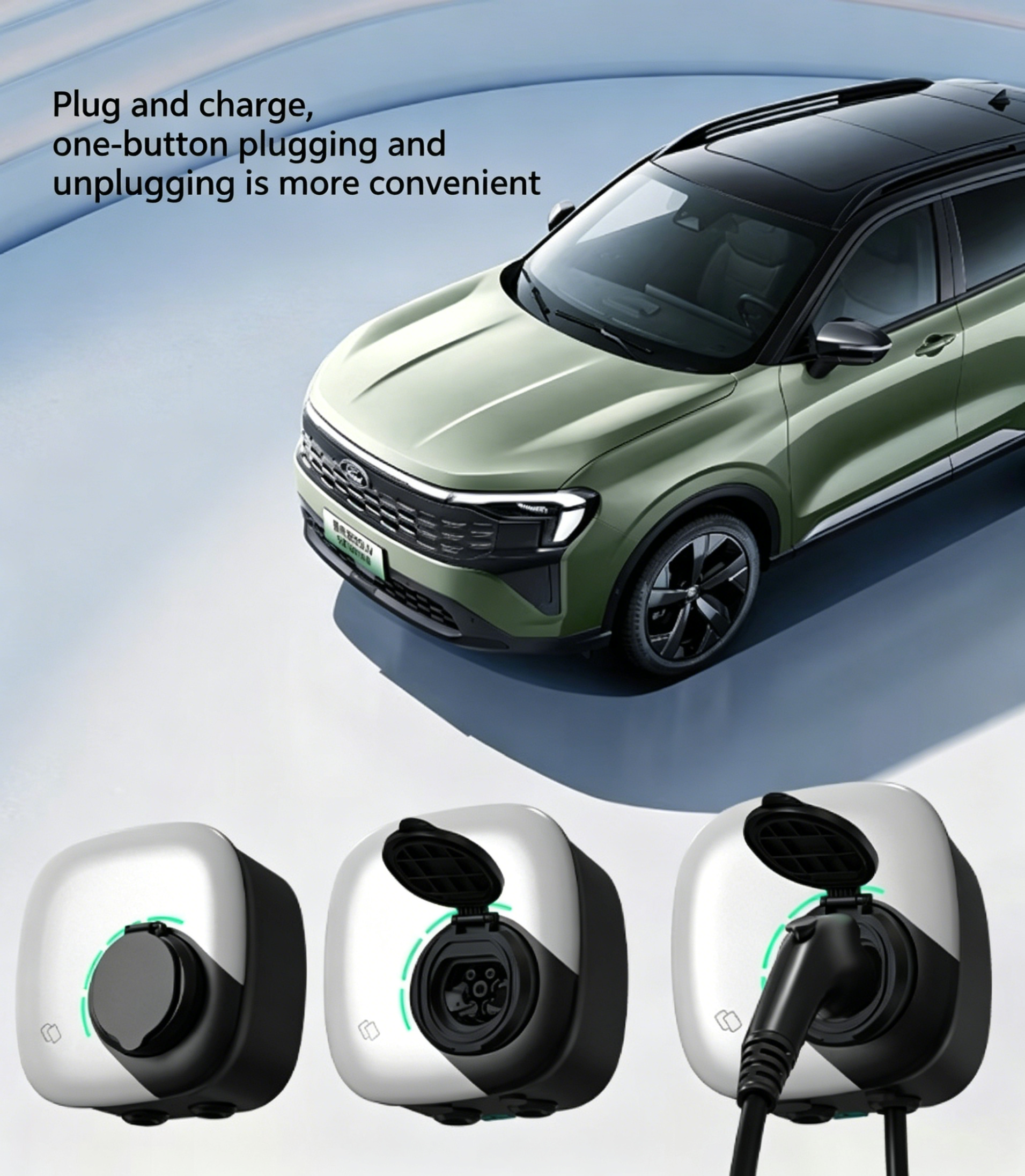

Dual start options: no-operation plug-and-charge (private home use) + RFID card swipe (commercial billing management)

Clear LED indicator: blue (standby) / green (connected) / flashing green (charging) / red (fault), easy status recognition

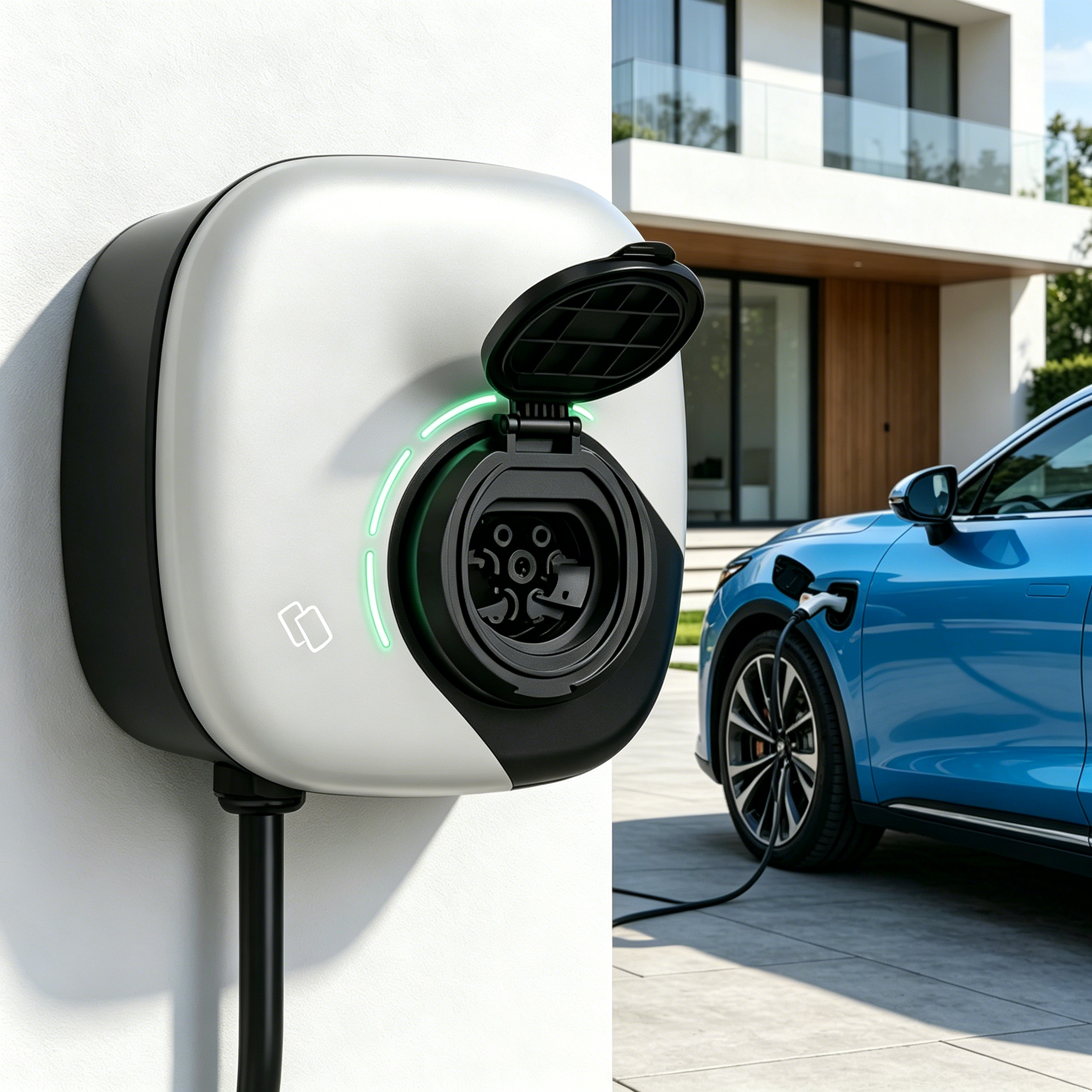

Flexible installation: support wall-mounted and pole-mounted, suitable for home garages, narrow community parking spaces, and mini commercial parking lots

Standard 3.5m charging cable, customizable length available to adapt to different parking layouts

Ultra-lightweight: ≈4.2KG (7KW) / ≈5.2KG (11KW/22KW), single-person easy installation, reduces labor cost

Safety and Compliance

Built-in RCD protection + full electrical protection: overvoltage, undervoltage, grounding, lightning, leakage, overcurrent, over-temperature, connector overheating, and anti-electric shock protection

IP66 dust & waterproof rating (IP55 when gun head is uncoupled), resistant to rain, snow, dust, and harsh outdoor weather

Compliant with Chinese national standards: GB/T18487.1, GB/T18487.2, GB/T20234.2, GB/T34657.1, NB/T33002, NB/T33008.2

Full international certifications: CE, FCC, ROHS, UKCA, no barriers for global export and deployment

Environmental and Mechanical Robustness

Wide operating temperature: -30℃ to +50℃, works normally in extreme cold and high-temperature regions

Storage temperature: -40℃ to +80℃, adapts to long-term outdoor storage and transportation

Working humidity: 5%-95% non-condensing, suitable for high-humidity coastal and rainy areas

Supporting installation altitude up to 2000m, suitable for plateau and mountainous regions

Small footprint: only 21.5×23×14.9cm (7KW version), maximizes space utilization for limited parking areas

Commercial and Customization Support

Cost-effective compact model, ideal for bulk deployment in high-density residential communities and small commercial parking lots

Customization support: adjustable cable length, custom brand LOGO, and function configuration, meeting personalized needs

Low maintenance design, no wearing parts, reduces long-term after-sales and operation cost

Full certification documents and technical support provided, helping customers quickly complete market access and project landing
