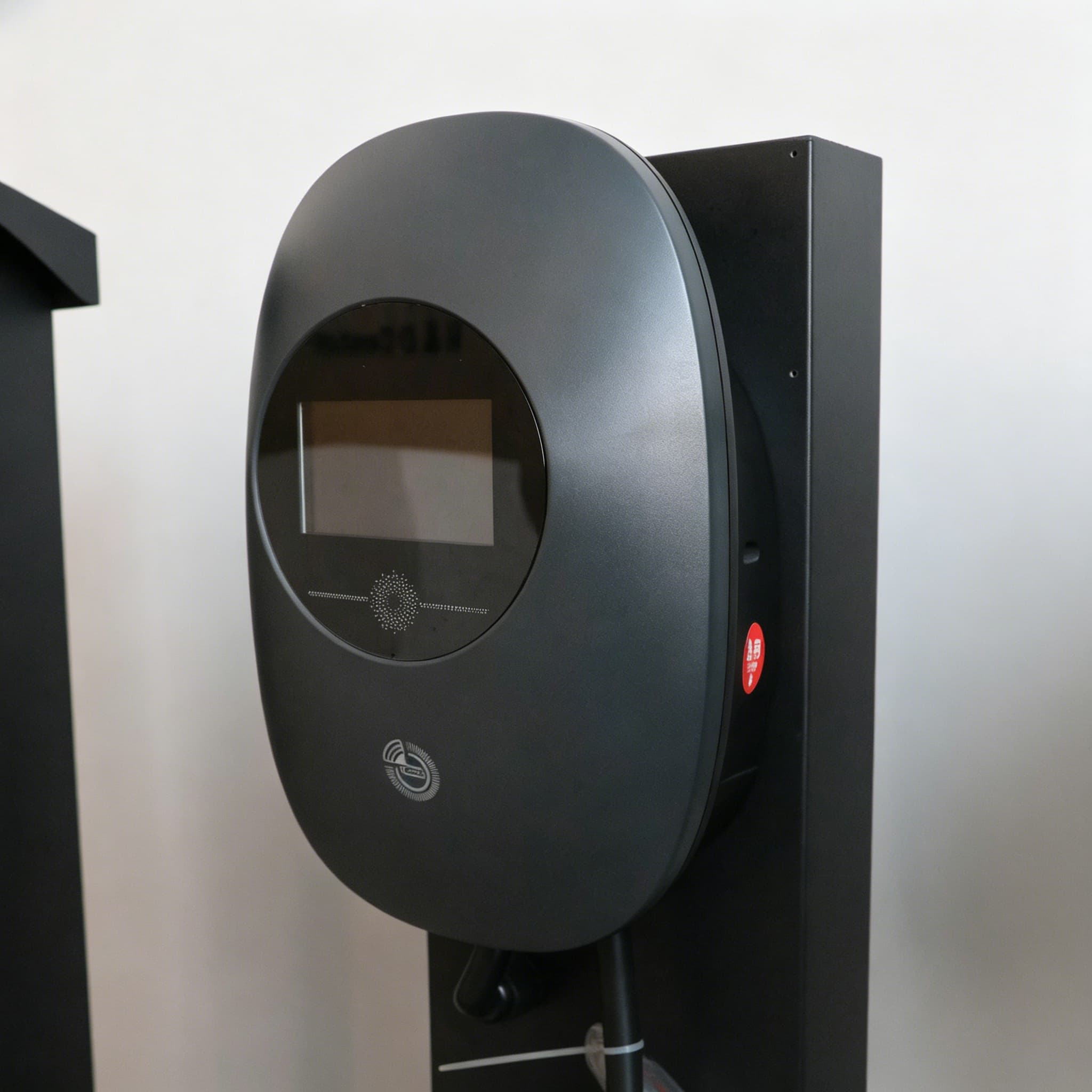

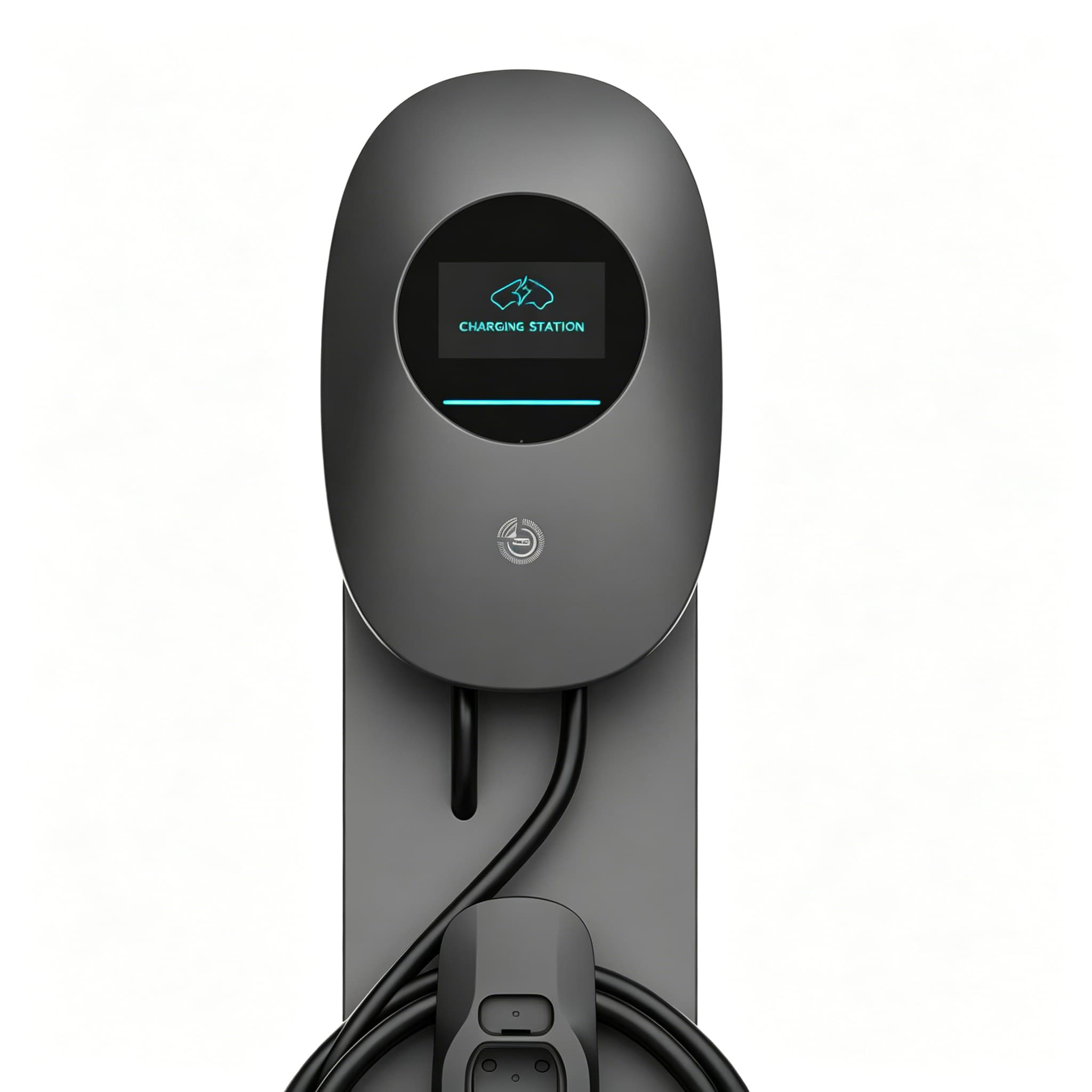

Q3.1 Series

Q3.1 Series | AC EV Charger (7KW/11KW/22KW)

Built for residential homeowners, commercial parking lots, property management companies, and new energy vehicle fleet operators

✅ 3 power options: 7KW / 11KW / 22KW, adapt to all mainstream new energy passenger vehicles

✅ Plug-and-play / RFID card start, easy for both home and commercial use

✅ IP66 dust & water resistance, suitable for outdoor installation

✅ Full global certifications: CE/FCC/ROHS/UKCA, compliant with domestic and international standards

✅ Customizable cable length, support wall-mounted /pole-mounted installation

Core Performance

3 power grades available: 7KW (single-phase), 11KW (three-phase), 22KW (three-phase), meeting different charging speed demands

Wide voltage adaptation: 7KW version AC220-240V input, 11KW/22KW version AC380-400V input, compatible with global grid standards

Stable output: 32A maximum output current for 7KW/22KW versions, 16A for 11KW version, ensuring safe and efficient charging

High-quality PC9010 housing material, flame-retardant and impact-resistant, durable for long-term use

Operational and Installation Flexibility

Dual start modes: plug-and-charge (no operation needed) + RFID card swipe (for commercial billing management)

Intuitive LED indicator: blue (standby) / green (connected) / flashing green (charging) / red (abnormal), clear status at a glance

Flexible installation: support wall-mounted and pole-mounted installation, suitable for home garages, commercial parking lots, and community charging areas

Standard 3.5m charging cable, customizable length available to adapt to different parking space layouts

Ultra-lightweight design: 4.2KG (7KW version) / 5.2KG (11KW/22KW version), easy for single-person installation and logistics

Safety and Compliance

Built-in RCD protection + full electrical protection mechanisms: over-voltage, under-voltage, grounding, lightning, leakage, over-current, over-temperature, and connector overheating protection

IP66 dust and waterproof rating (IP55 when gun head is uncoupled), resistant to rain, dust, and harsh outdoor environments

Compliant with Chinese national standards: GB/T18487.1, GB/T18487.2, GB/T20234.2, GB/T34657.1, NB/T33002, NB/T33008.2

Full international certifications: CE, FCC, ROHS, UKCA, suitable for global export and deployment

Environmental and Mechanical Robustness

Wide operating temperature range: -30℃ to +50℃, adapting to extreme cold and high-temperature regions

Storage temperature range: -40℃ to +80℃, supporting long-term storage in harsh environments

Working humidity: 5%-95% non-condensing, suitable for high-humidity coastal areas

Supporting installation altitude up to 2000m, suitable for plateau and mountainous regions

Compact dimensions: 35.5×22.8×11.8cm (7KW) / 52×24×22cm (11KW/22KW), small footprint saves installation space

Commercial and Customization Support

Customization support: adjustable cable length, custom brand LOGO, and functional configuration, meeting personalized needs for different scenarios

Low-maintenance design, no vulnerable parts, reducing after-sales cost for property management and fleet operators

Bulk pricing support, ideal for large-scale deployment in residential communities, commercial buildings, and charging stations

Full technical support and certification documents provided, helping customers quickly complete local market access and deployment
