Q3 Series

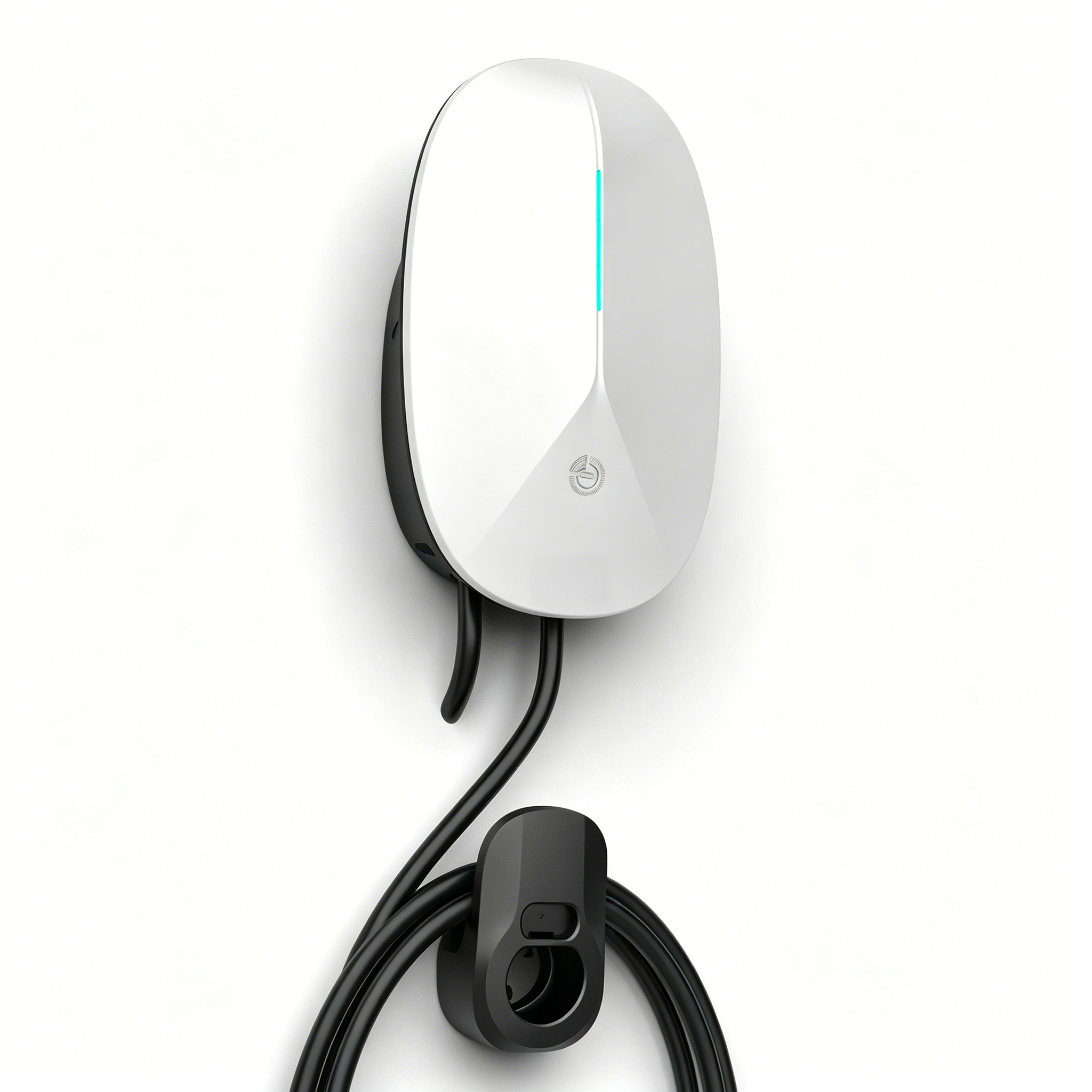

Q3 Series | Basic AC EV Charger (7KW/11KW/22KW)

Built for residential home users, small commercial parking lots, property management teams, and entry-level EV charging infrastructure deployers

✅ 3 power configurations: 7KW (single-phase) / 11KW (three-phase) / 22KW (three-phase), compatible with all mainstream new energy vehicles

✅ Dual start modes: plug-and-play + RFID card swipe, suitable for both home private use and small commercial management

✅ IP66 dust & waterproof rating, safe for outdoor long-term installation

✅ Global full certifications: CE/FCC/ROHS/UKCA, compliant with domestic and international market access

✅ Lightweight & easy installation, support wall-mounted / pole-mounted deployment

Core Performance

3 power grades to meet different needs: 7KW for home daily charging, 11KW/22KW for commercial fast charging scenarios

Wide grid adaptation: 7KW version supports AC220-240V single-phase input, 11KW/22KW version supports AC380-400V three-phase input, adapting to global power grid standards

Stable output: 32A maximum output current for 7KW/22KW models, 16A for 11KW model, ensuring consistent and efficient charging

High-quality PC90

Operational and Installation Flexibility

Two start options: no-operation plug-and-charge (for private home use) + RFID card swipe (for small commercial billing management)

Clear LED status indicator: blue (standby) / green (vehicle connected) / flashing green (charging) / red (fault), easy to identify status without extra operation

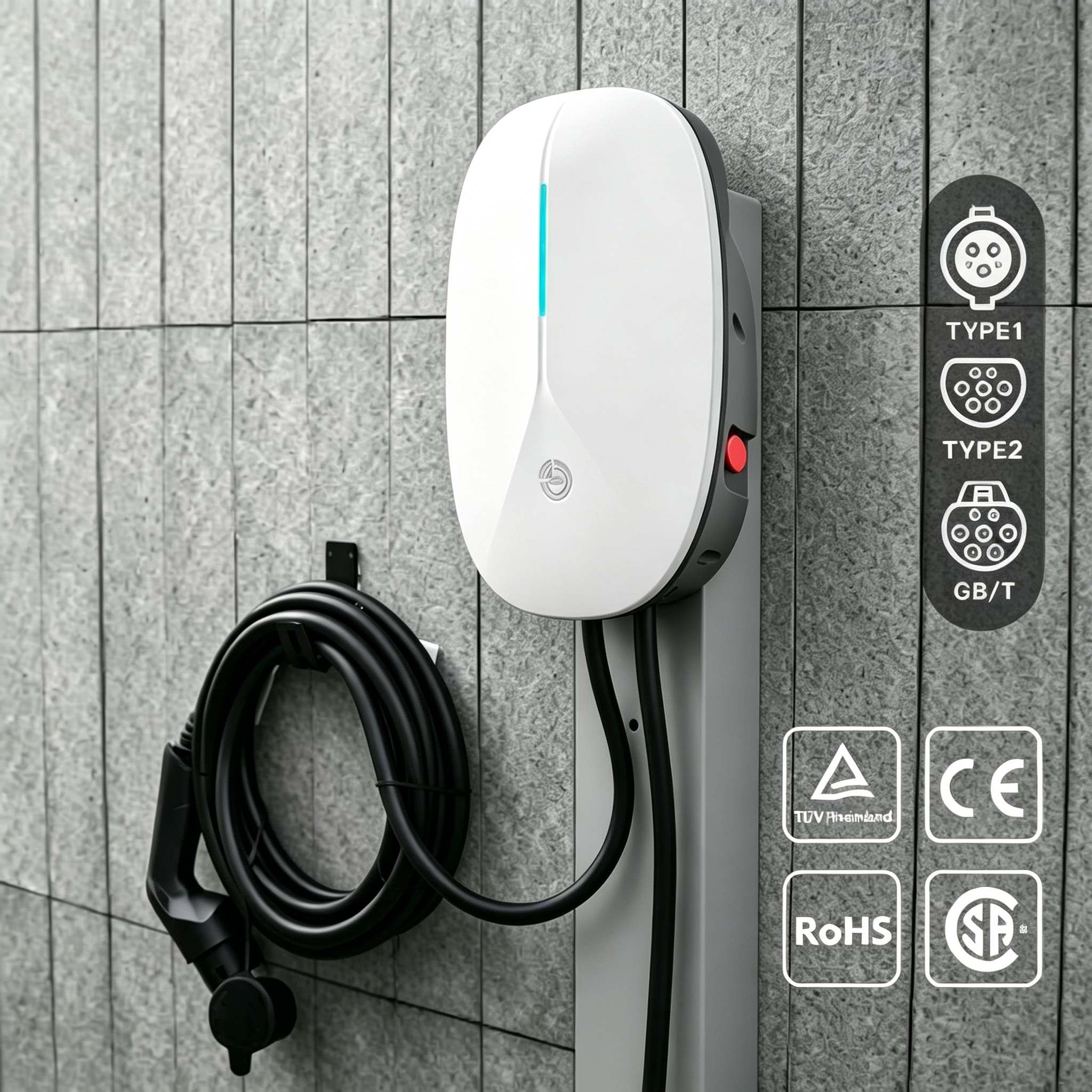

Flexible installation: compatible with wall-mounted and pole-mounted methods, suitable for home garages, community parking spaces, and small commercial parking lots

Standard 3.5m charging cable, customizable length available to match different parking space layouts

Ultra-light body: ≈4.2KG (7KW version) / ≈5.2KG (11KW/22KW version), single-person can complete installation easily, reducing deployment labor cost

Safety and Compliance

Built-in RCD protection + 10+ comprehensive electrical protection: over-voltage, under-voltage, grounding, lightning, leakage, over-current, over-temperature, connector overheating, and anti-electric shock protection

IP66 dust and waterproof rating (IP55 when gun head is unplugged), resistant to rain, snow, dust, and harsh outdoor weather

Compliant with Chinese national standards: GB/T18487.1, GB/T18487.2, GB/T20234.2, GB/T34657.1, NB/T33002, NB/T33008.2

Full international export certifications: CE, FCC, ROHS, UKCA, no barriers for global market sales and deployment

Environmental and Mechanical Robustness

Wide operating temperature range: -30℃ to +50℃, working normally in northern cold areas and southern high-temperature areas

Extreme storage tolerance: -40℃ to +80℃ storage temperature, adapting to long-term outdoor storage and transportation

Working humidity: 5%-95% non-condensing, suitable for high-humidity coastal and southern rainy areas

Supporting installation altitude up to 2000m, suitable for plateau and mountainous area deployment

Compact size: 35.5×22.8×11.8cm (7KW) / 52×24×22cm (11KW/22KW), small footprint saves installation space

Commercial and Customization Support

Cost-effective entry-level model, ideal for large-scale bulk deployment in residential communities and commercial parking lots

Customization support: adjustable cable length, custom brand LOGO printing, and function configuration, meeting different brand and scenario needs

Low maintenance design, no wearing parts, reducing long-term after-sales service and operation cost

Full certification documents and technical support provided, helping customers quickly complete local market access and project landing
