DDC03

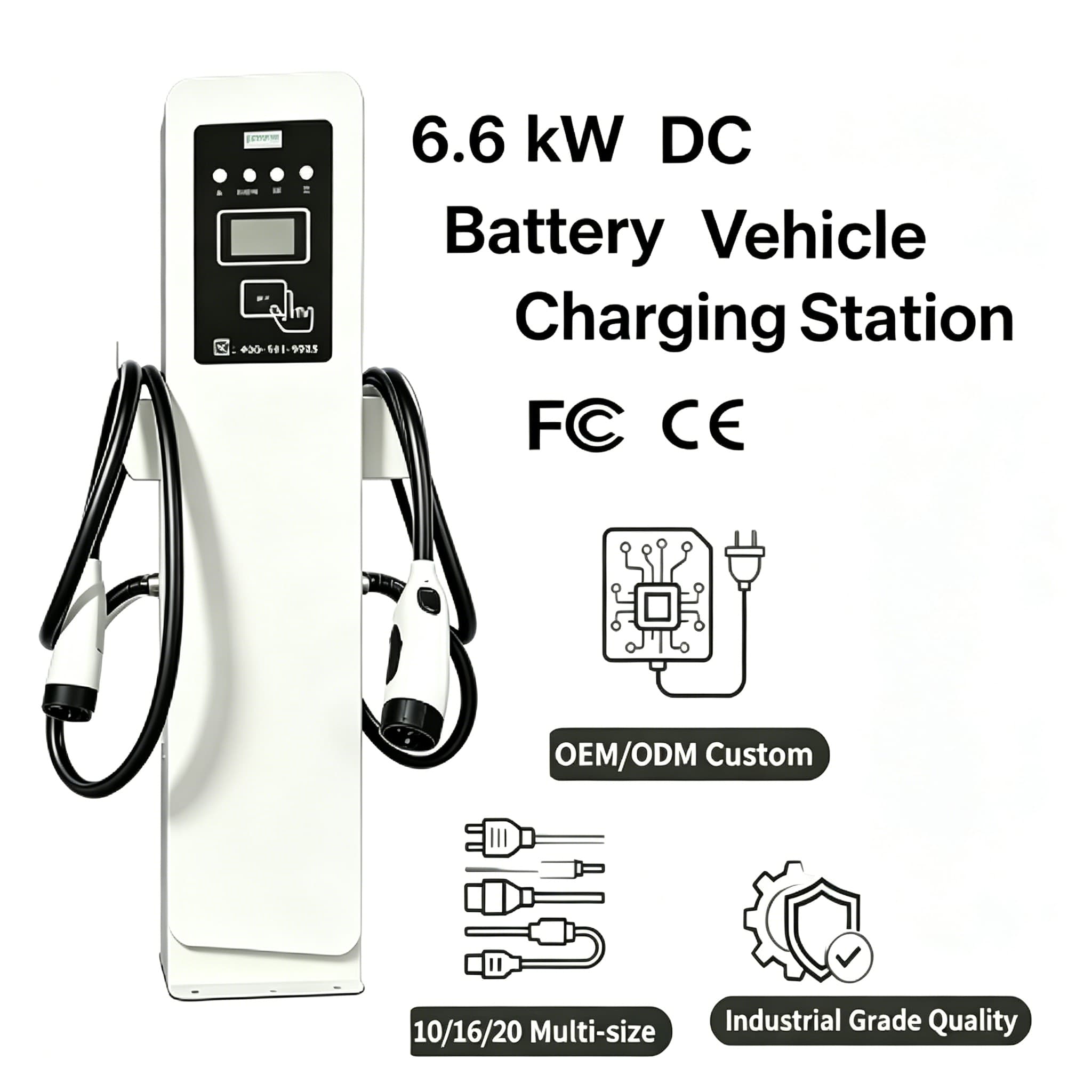

PTN-DDC03 | 6.6KW DC Battery Charging Station (Operational Version)

Built for shared electric two-wheeler fleets, battery swap stations, community charging operators, and campus mobility providers

Core Performance

6.6KW total rated power with dual 3.3KW independent output connectors, supporting simultaneous charging for two electric vehicles with high efficiency

Wide compatibility: input voltage AC220V, output voltage DC 60V–100V with 0–40A maximum output current,

Ultra-low standby power consumption of 5–10W, reducing long-term operating costs for commercial deployment

Natural cooling design with noise ≤60db, ensuring quiet and stable operation without additional cooling maintenance in high-frequency usage scenarios

Operational and Installation Flexibility

Simple L+N+PE wiring method, compatible with standard household and commercial power grids, no special power transformation required for deployment

4.3-inch LED display with clear running status indicators, providing real-time charging data and fault alerts for on-site management

Optional RFID card charging, 4G connectivity, OTA remote upgrade, and LEN functions, meeting diversified operational management needs

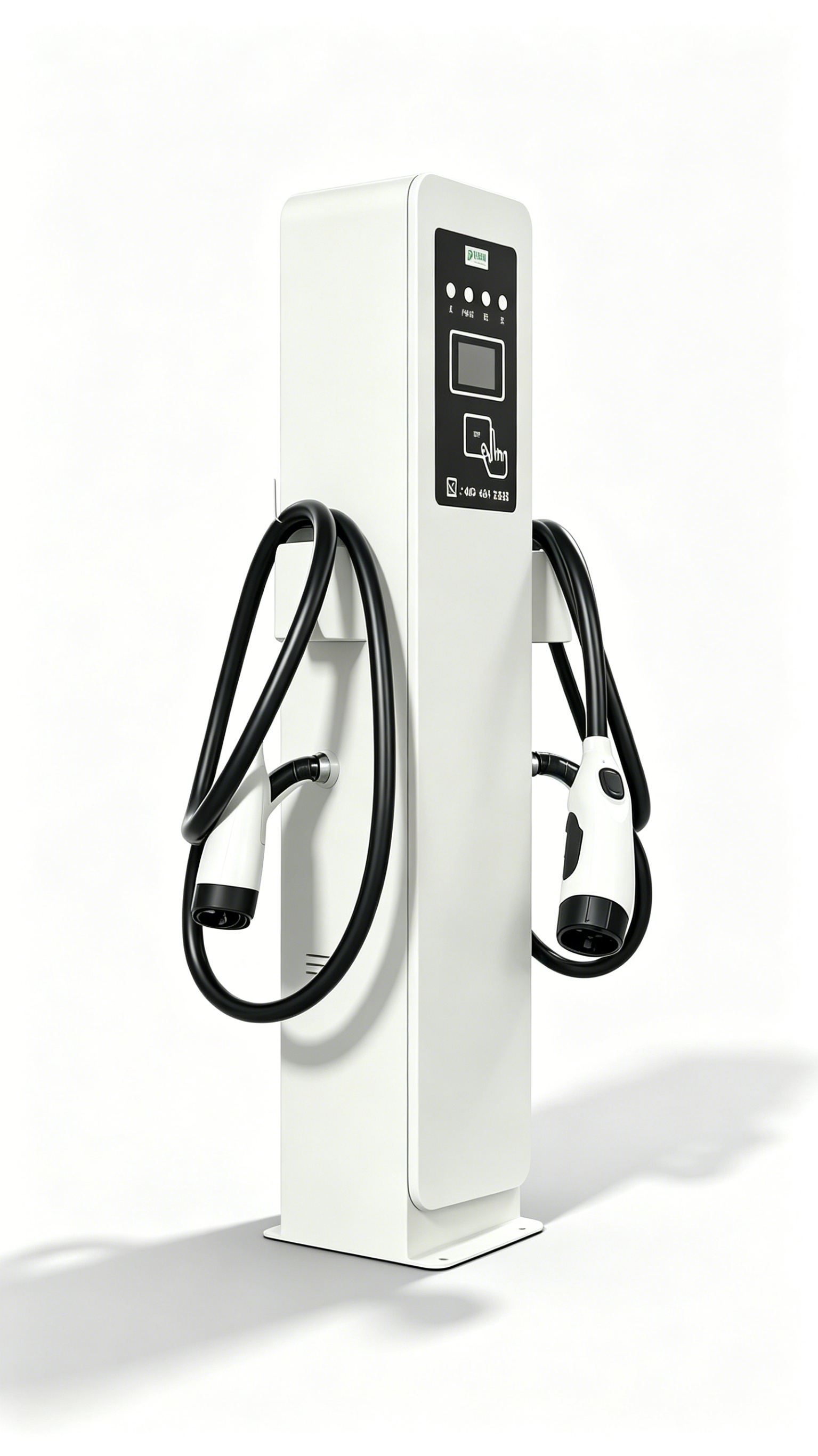

Vertical floor-mounted design with compact dimensions of 300×150×1400mm and lightweight ≤25kg, easy to install in narrow spaces such as community corridors and parking sheds

Standard 5m cable length, with custom lengths available to adapt to different site layout requirements

Safety and Compliance

Comprehensive input-side protection: low voltage, overvoltage, leakage current, and over-temperature protection, eliminating grid-side safety risks

Full output-side protection: overcurrent, overvoltage, and reverse polarity protection, preventing battery damage during charging

Internal safety mechanisms: over-temperature protection and MCU multifunction error detection, ensuring automatic fault shutdown for abnormal conditions

IP54-rated enclosure for dust and splash resistance, suitable for semi-outdoor and covered outdoor charging scenarios

Certified with SLO (Feasibility Certificate), SNI (Indonesian National Standard), and SDPPI (Telecommunication Equipment Certification), meeting local market compliance requirements

Environmental and Mechanical Robustness

Wide operating temperature range from -30°C to 75°C, adapting to extreme cold and high-temperature climate regions

Working humidity 5% – 95% non-condensing, supporting normal operation in high-humidity coastal and southern regions

Supporting installation altitude up to 2000m, suitable for plateau and mountainous area deployment

Durable construction with galvanized steel with powder coating + glass panel, anti-corrosion and scratch-resistant for long-term outdoor commercial use

Commercial and Customization Support

Dual-channel independent output design, doubling charging capacity per unit to reduce deployment quantity and site cost for operators

Low-maintenance structure with no vulnerable cooling parts, reducing after-sales service frequency for large-scale operation

Full OEM/ODM customization support: adjustable cable length, optional functional modules, and custom brand LOGO, meeting personalized operational needs

Ideal scalable solution for shared mobility platforms, battery swap operators, and property management companies seeking low-cost, high-reliability charging infrastructure
