DDC02

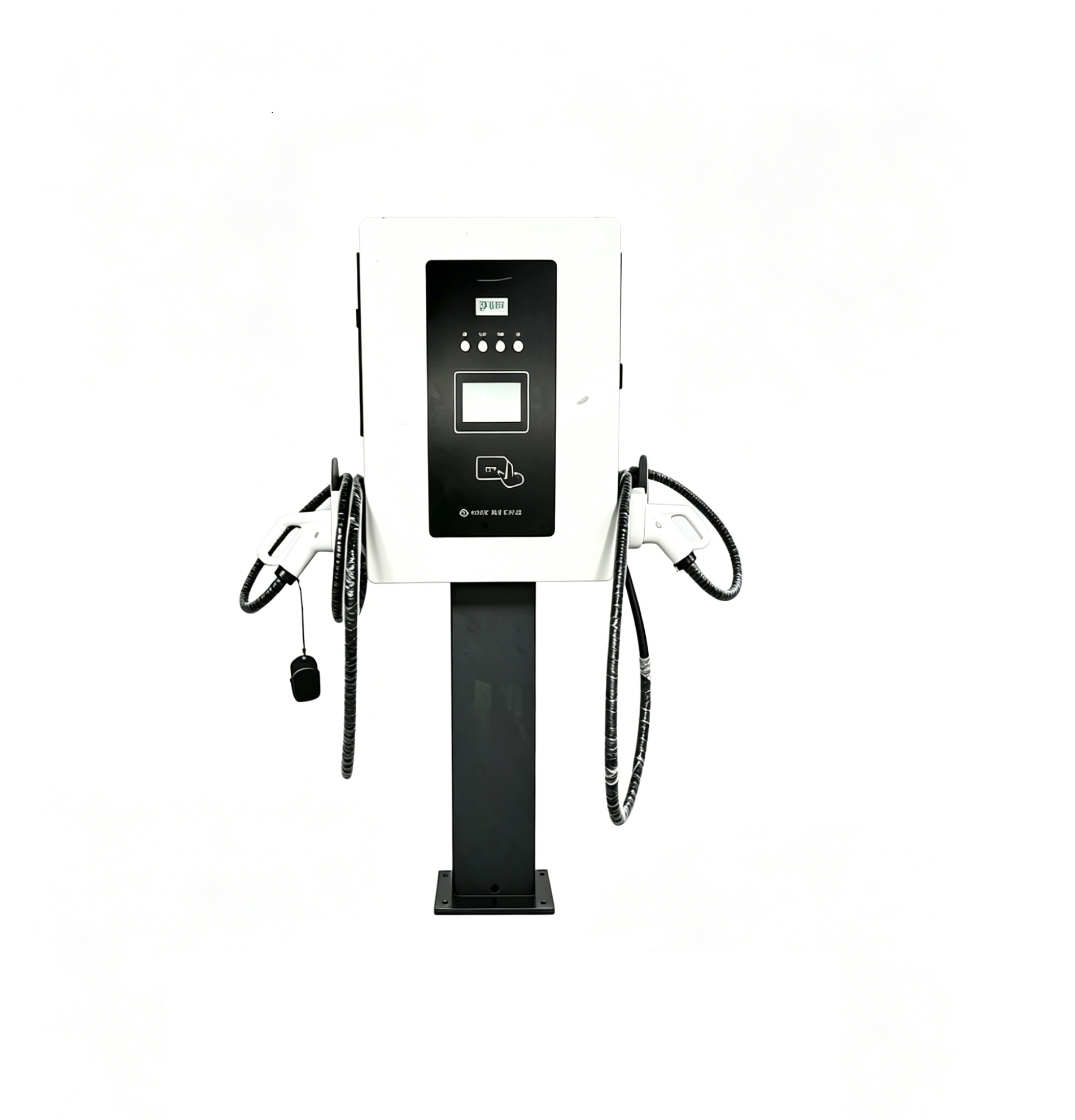

PTN-DDC02 | 20KW DC Electric Motorcycle Charger (Commercial Version)

Built for shared electric motorcycle fleets, battery swap stations, urban fast charging operators, and commercial mobility service providers

Core Performance

20KW total rated power with dual 10KW independent output connectors, supporting simultaneous fast charging for two electric motorcycles, greatly improving charging turnover efficiency for commercial operation

Wide voltage and current adaptation: output voltage DC 48V–100V with 0–100A maximum output current per connector, compatible with all mainstream electric motorcycle and low-speed electric vehicle battery specifications

Ultra-low standby power consumption of 5–10W, effectively reducing idle energy loss for 24-hour commercial operation stations

Natural cooling design with operating noise ≤60db(A), no fan wear and maintenance, ensuring quiet and stable operation in community and commercial parking areas

Operational and Installation Flexibility

Three-phase wiring method (L1+L2+L3+N+PE) with AC380V input, adapting to standard commercial power grids for fast grid connection and deployment

4.3-inch OLED display with LED running status indicators, providing clear real-time charging data, fault alerts, and operation guidance for on-site management

Optional functions: RFID card charging, 4G remote connectivity, OTA remote upgrade, and LEN protocol, supporting diversified operational management and platform docking needs

Floor-mounted design with compact dimensions of 550×250×700mm and net weight ≤25kg, flexible installation in parking lots, battery swap stations, and roadside fast charging spots

Standard 5m charging cable, with custom length options available to adapt to different site layout and parking space requirements

Safety and Compliance

Full input-side protection: low voltage, overvoltage, leakage current, and over-temperature protection, eliminating safety risks from grid abnormalities

Comprehensive output-side protection: overcurrent, overvoltage, and reverse polarity protection, preventing battery damage and charging accidents

Internal safety mechanisms: over-temperature protection and MCU multifunction error detection, triggering automatic shutdown and alarm for abnormal conditions

IP54-rated enclosure for dust and splash resistance, suitable for semi-outdoor and covered outdoor commercial charging scenarios

Environmental and Mechanical Robustness

Ultra-wide operating temperature range from -30°C to 75°C, adapting to extreme cold regions in the north and high-temperature regions in the south

Working humidity 5% – 95% non-condensing, supporting stable operation in high-humidity coastal and rainy areas

Supporting installation altitude up to 2000m, suitable for plateau and mountainous urban operation deployment

Durable housing made of galvanized steel with powder coating + glass panel, anti-corrosion, scratch-resistant, and anti-aging, meeting long-term outdoor commercial use requirements

Commercial and Customization Support

Dual-channel 10KW independent output design, 20KW total power doubles single-unit charging capacity, reducing deployment quantity and site cost for large-scale operators

Low-maintenance passive cooling structure, no vulnerable cooling components, reducing after-sales service frequency and operation cost for commercial fleets

Full OEM/ODM customization support: custom cable length, functional module configuration, and brand LOGO printing, meeting personalized operation needs

Ideal scalable fast charging solution for shared mobility platforms, battery swap operators, and urban charging infrastructure investors pursuing high efficiency and high reliability
