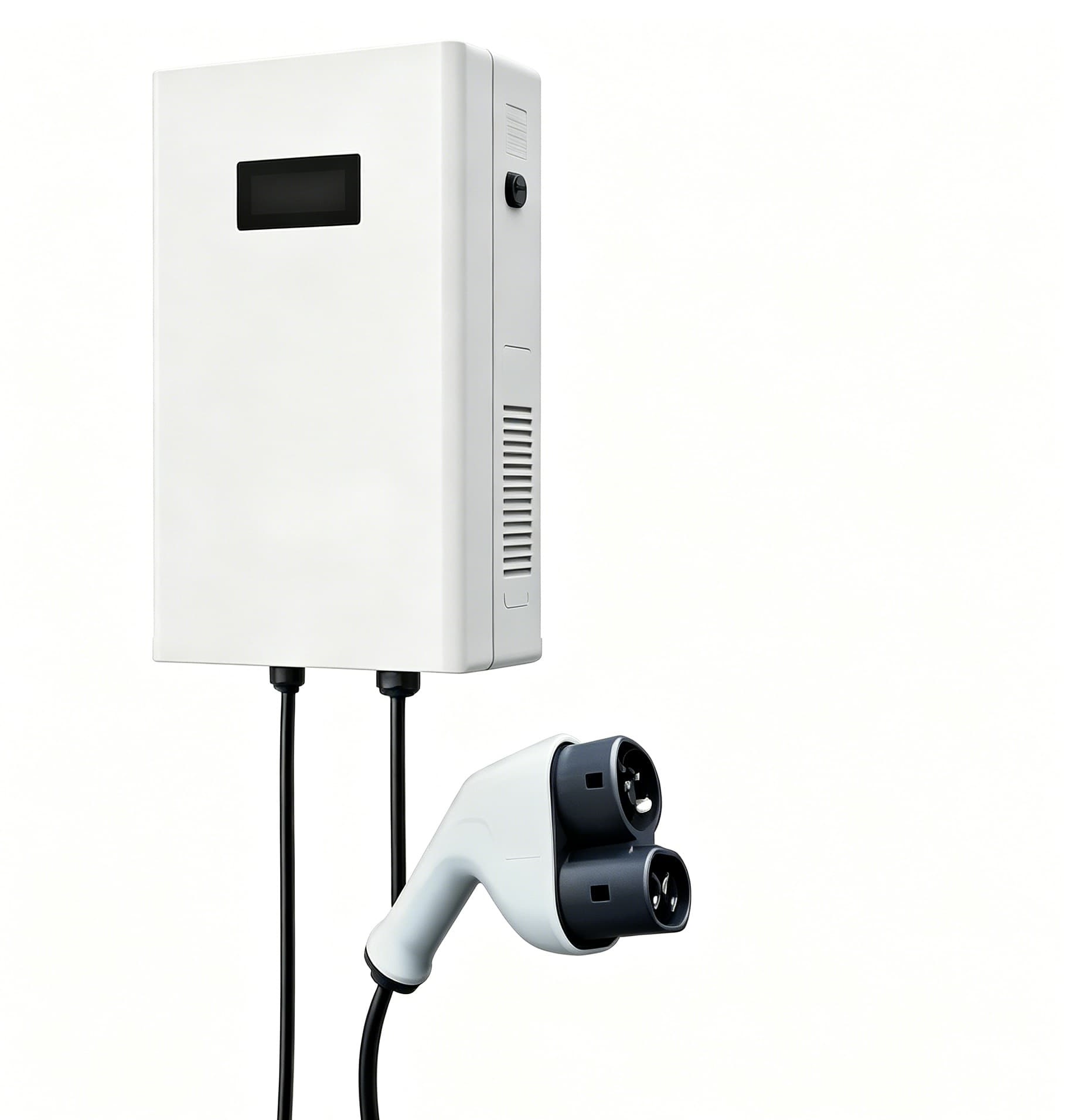

EBC 7000 | 7kW DC Fast Charger

Core Performance

• 7kW rated power with up to 6.6kW continuous output and 95% charging efficiency

• Wide compatibility: input voltage AC 90–260V, output voltage DC 200–1000V with 0–23A adjustable current

• Forced air cooling ensures stable, continuous operation in high-usage commercial environments

Operational and Installation Flexibility

• Plug-and-charge function with auto-stop protection when fully charged

• 2.7-inch color digital display provides clear, real-time charging status information

• Wall-mounted installation design, which can draw power directly from AC chargers

• Suitable for charging stations, parking lots, and fleet depots

• 1.5m input cable and 5m output cable, with custom lengths available to meet site requirements

Safety and Compliance

• Built to meet GB2011 and GB2015 safety standards

• Comprehensive protection including short circuit, overvoltage, undervoltage, overheating, overcurrent, emergency stop, and leakage fault protection

• IP54-rated enclosure for dust and moisture resistance, suitable for outdoor and semi-outdoor use

Environmental and Mechanical Robustness

• Wide operating range: working temperature from -20°C to 50°C, working humidity 5–95% non-condensing, working altitude up to 2000m

• Durable construction with sheet metal and acrylic panel for long-term commercial use

• Compact dimensions of 425×220×150mm and a lightweight 13kg design for easy installation and logistics

Commercial and Customization Support

• OEM and ODM customization available, including cable length, interface, and software configuration

• Low-maintenance design ideal for fleet operators, charging station owners, and shared mobility providers seeking a scalable, reliable charging solution
